Honeywell

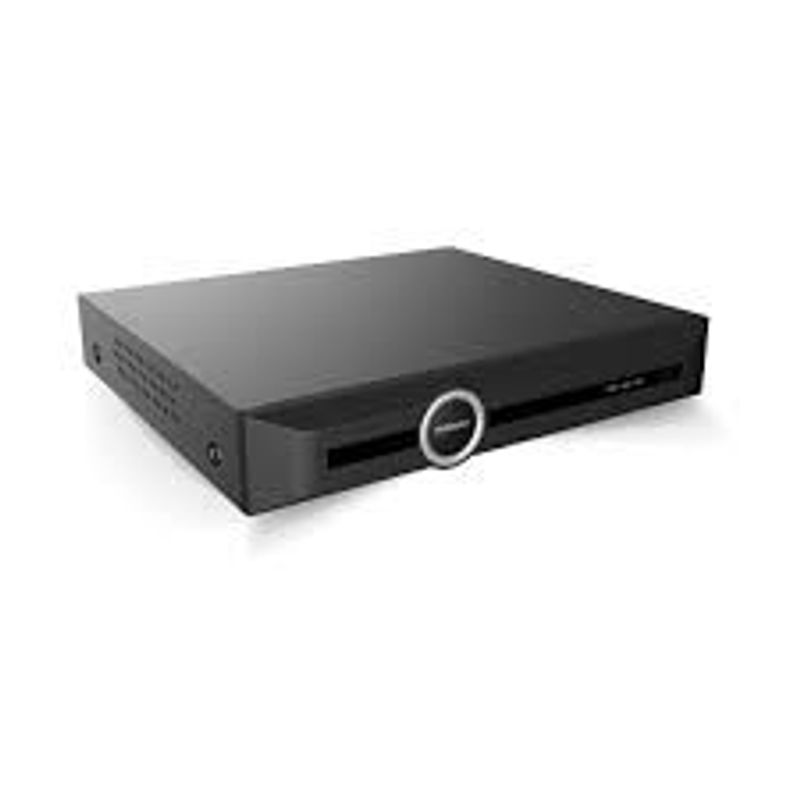

IMPACT Series 20 Channel NVR (I-HNVR-1220) with 2 SATA, HDMI & VGA Simultaneous Out, IH+265/H.265/H.264 video formats, Support up to 8 MP Resolution
SKU: I-HNVR-1220
Select required product from options below:
SATA Port: 2 SATA
About Product
The new Impact series of Network Video Recorders (NVRs) is beneficial to customers who want a higher quality of video surveillance enhanced by HD and an advanced setup. This product can be used for video surveillance in banks, offices, manufacturing industries, warehouses, and parking lots - where image quality and clarity is a key priority. The smart features offered by the new Impact series of NVRs greatly help in the effective analysis of the video feed, while optimizing storage.
Key Specs
- RAID: NA
- ROHS: NA
- SAFETY: NA
- Audio-in: NA
- Bandwidth: Income 80Mbps; Outgoing 80Mbps
- COMPRESSION: IH+265/H.265/H.264
- Audio Output: 1xRCA
- Max Resolution: 8 MP
- No.Of Channels: 20
- HDMI/VGA Output: HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768
- INTERNAL SATA Ports: 2
- EXTERNAL HDD (eSATA Port): NA
Or
Product Specifications
Video
No.Of Channels
20
Max Resolution
8 MP
Bandwidth
Income 80Mbps; Outgoing 80Mbps
HDMI/VGA Output
HDMI 1-ch, 3840×2160,1920×1080, 1280×720, 1024×768, 1366×768, 1440×900, 1280×800 VGA 1-ch, 1920×1080, 1440×900, 1366×768, 1280×800, 1280×720, 1024×768
Screen Split
1/3/4/5/6/7/8/9/10/13/16/20A/20B
Audio
Audio-in
NA
Audio Output
1xRCA
Recording
COMPRESSION
IH+265/H.265/H.264
RESOLUTION
8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
FRAME RATE
NA
RECORD BIT RATE
NA
BIT RATE1
NA
RECORDING MODE
NA
RECORDING INTERVAL
NA
PRE-EVENT RECORDING INTERVAL
NA
POST-EVENT RECORDING INTERVAL
NA
VIDEO DETECTION AND ALARMS
TRIGGER EVENTS
Motion Detection, Intrusion
VIDEO DETECTION
Motion Detection, Intrusion
ALARM INPUT
NA
RELAY OUTPUT
NA
PLAYBACK AND BACKUP
SYNC PLAYBACK
1x8MP, 1x6MP, 1x5MP, 2x4MP, 2x3MP, 4x1080P, 8x720P
SEARCH MODE
NA
PLAYBACK FUNCTION
NA
BACKUP MODE COMPATIBILITY
NA
NETWORK
ETHERNET
1xRJ45 self-adaptive 10/100 Mbps network interface
POE
Available
SUPPORTED PROTOCOLS2
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, IGMP, QoS, IPV4, IPV6, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS
MAXIMUM NUMBER OF USERS
5
NETWORK THROUGHPUT
NA
SMART PHONE COMPATIBILITY
Yes
STORAGE
INTERNAL SATA Ports
2
EXTERNAL HDD (eSATA Port)
NA
RAID
NA
AUXILIARY INTERFACE
USB PORTS
2xUSB 2.0
RS232
NA
ELECTRICAL
POWER SUPPLY
DC12V 3.33A
POWER CONSUMPTION
≤10W (without HDD)
ENVIRONMENTAL
OPERATING TEMPERATURE
-10°C~55°C, 10%~90% RH
RELATIVE HUMIDITY
NA
STORAGE TEMPERATURE
NA
PHYSICAL
DIMENSIONS
44x255x231mm, (1.78x10.04x9.09 inch)
WEIGHT (WITHOUT HDD)
0.8Kg (1.76lb)
REGULATORY
EMISSIONS
NA
IMMUNITY
NA
SAFETY
NA
ROHS
NA
