Honeywell
Impact 2MP Motorized Varifocal Dome(I-HID2PI-V), Full Metal Housing, Motorized Lens 2.8mm – 12mm, Smart IR, IR Range: up to 30M, IH+265/ H.265/H.264, Min. illumination Color: 0.02Lux@ F1.6, Built-in Mic, SD Card Slot, Reset Button, POE, IP67, IK10, Support tripwire and perimeter
SKU: I-HID2PI-V
Select required product from options below:
Enclosure : Metal Body
About Product

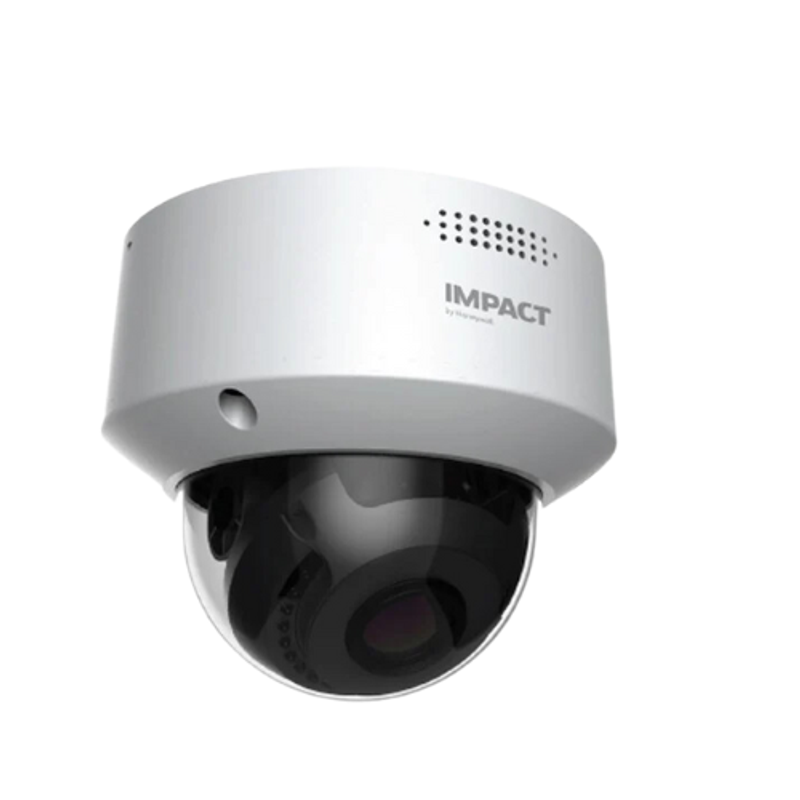

The IMPACT by Honeywell IP Motorized IR Dome Camera is a 2MP Camera with 2.8-12mm lens, in a Dome form factor. This economically priced camera features a built-in mic, for enhanced surveillance with the addition of an onsite audio. A superior IR range of 30mts ensures effective surveillance even in low ambient lighting, while its IH+265 compression reduces the bit rate, enabling faster streaming and lower storage needs.
Key Specs
- Lux: Color: 0.02Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
- IR Range: Up to 30m
- Lens type: 2.8-12mm Motorized
- Resolution: 2MP
- Alarm Trigger: Motion Detection, Mask Alarm, IP Address Conflict
- Max Resolution: 1920x1080
- Video Analytics: Tripwire, Perimeter
- On-board storage: Built-in MicroSD card slot, up to 512 GB
- Image Enhancement: BLC/3D DNR/HLC
- Wide Dynamic Range: 120dB
Or
Product Specifications
Camera
Resolution
2MP
Image Sensor
1/2.9” CMOS
Signal System
PAL/NTSC
Lux
Color: 0.02Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter time
1s to 1/100,000s
Day & Night
Dual IR Cut Filter with Auto Switch
Wide Dynamic Range
120dB
Angle Adjustment
pan 0~330°, tilt 0~75°, roate 0~350°
Lens
Lens type
2.8-12mm Motorized
Lens Mount
ø14
Aperture
F1.6~F3.3, Fixed
FOV
Horizontal field of view: 98°~28°
Illuminator
IR LED
18
IR Range
Up to 30m
Wavelength
850nm
Compresssion Standard
Video compression
IH+265/H.265/H.264
Video Bit Rate
32Kbps~6Mbps
Audio compression
G.711/G.711U/ADPCM
Audio Bit Rate
8K~48Kbps
Max Resolution
1920x1080
Main Stream
PAL: 25fps (1920x1080, 1280x720, 704x576, 640x480) NTSC: 30fps (1920x1080, 1280x720, 704x480, 640x480)
Sub Stream
PAL: 25fps (704x576, 704x288, 640x360, 352x288) NTSC: 30fps (704x480, 704x240, 640x360, 352x240)
Image Setting
Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement
BLC/3D DNR/HLC
OSD
16x16, 32x32, 48x48, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Privacy Mask
Yes, 4 regions
Smart Defog
Yes
Feature
Alarm Trigger
Motion Detection, Mask Alarm, IP Address Conflict
Video Analytics
Tripwire, Perimeter
Network
Protocol
TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet
System Compatibility
ONVIF PROFILE (S/T/G) SDK, CGI (IE)
Remote Connection
≤7
Client
IH-VIEW
Web Version
Web5
Interface
Communication Interface
1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O
Mic in
On-board storage
Built-in MicroSD card slot, up to 512 GB
General
Web Client Language
English
Operating Conditions
-35°C~65°C, 0~95% RH
Power Supply
DC 12V±25%, PoE (802.3af)
Power Consumption
MAX:7.5W (12V) MAX: 9W (PoE)
Protection
IP67, Lightning protection, surge protection and voltage transient protection
Dimensions
143X124mm ( 5.63X4.88inch)
Weight
0.86Kg (1.90lb)
