Honeywell

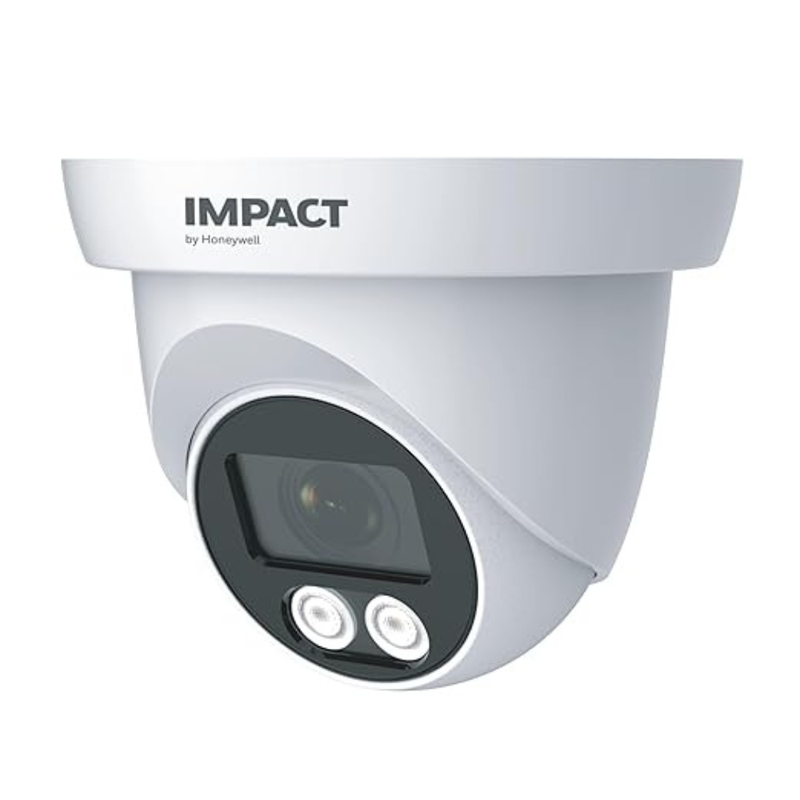

Impact 5 MP Dome AHD No Audio
SKU: I-HADC-5PI-L
Select required product from options below:
Audio: No Audio
About Product
Featuring the advanced Analog High Definition (AHD) video technology, Impact 5MP AHD Camera in dome form factor, provides sharp 8M:3840x2160, 5M:2592x1944, 4M:2560x1440, and 2M:1920x1080 resolution. The AHD technology ensures real-time and non-compressed signal transmission via coaxial cable, which significantly reduces installation cost and provides much sharper images without video quality loss.
Key Specs
- WDR: DWDR
- Audio: No Audio
- Lens Type: Fixed
- Camera Type: 5MP Dome AHD
- IR Distance: up to 25m
- Focus Length: 3.6mm
- Image Sensor: 1/2.5" CMOS sensor
- IR Cut Filter: YES
- Effective Pixels: 8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080
- Minimun Illumination: Color : 0.03 lux@F2.0, AGC ON; B/W : 0 lux with IR
Or
Product Specifications
Camera
Camera Type
5MP Dome AHD
Image Sensor
1/2.5" CMOS sensor
Effective Pixels
8M:3840*2160 5M:2592*1944 4M:2560*1440 2M:1920*1080
Signal System
PAL/NTSC
Electronic Shutter
Auto
Minimun Illumination
Color : 0.03 lux@F2.0, AGC ON; B/W : 0 lux with IR
Scanning System
Progressive Scan
LENS
Focus Length
3.6mm
Focus Control
Fixed
Lens Type
Fixed
IR Cut Filter
YES
Infrared LED
2pcs LED
IR Distance
up to 25m
IR Status
AGC auto control
CAMERA FEATURES
OSD Menu
Yes
WDR
DWDR
UTC
Yes
Noise Reduction
3DNR
White Balance
AUTO / MANUAL
Gain Control
AUTO
Audio
No Audio
Day/Night
Yes/No
GENERAL
Housing
Metal+Plastic, IP65
Bracket
NA
Operation Temperature
-30DegreeC ~ +50DegreeC RH95% Max
Storage Temperature
-20degreeC ~ +60degreeC RH95% Max
Power Source
DC12V±10%, 500mA
Dimensio
108x85(H)mm
Weight
400g
