Matrix

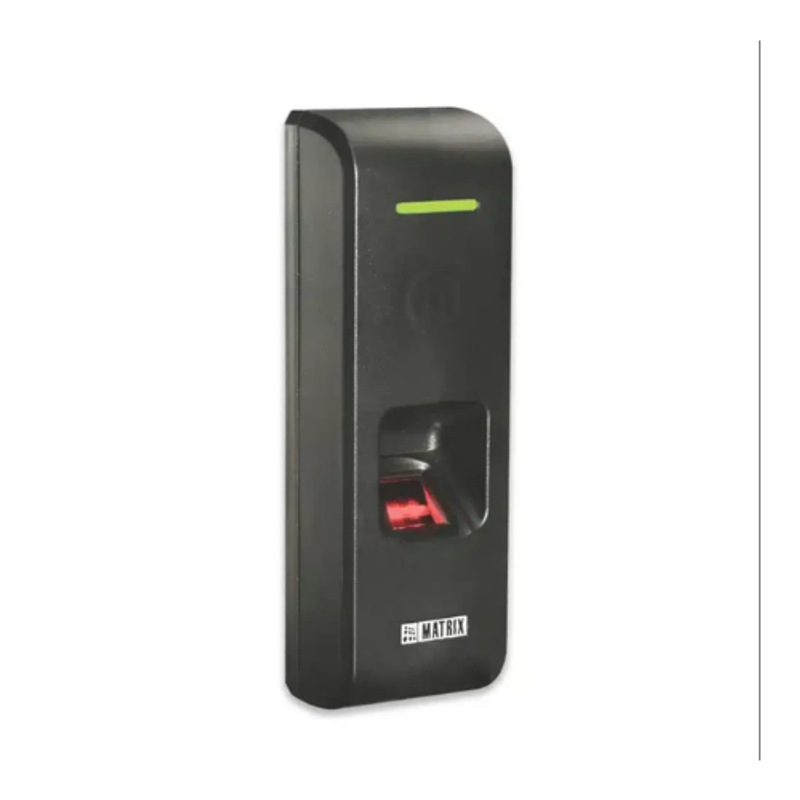

COSEC PATH DCFE, BLE, Fingerprint and EM Proximity Card based Door Controller, IP65 Design, 50,000 users, Max Template Storage : SFM 6030: 25,000 (1:N) And 100,000 ( 1:1), Event Buffer: 5,00,000, Suitable for both Time Attendance & Access Control Solution.
SKU: COSEC PATH DCFE
Select required product from options below:
Credentials Support: Biometric + EM Prox Card
About Product
The Matrix COSEC Path series is a door controller designed for secure access control systems. It is part of Matrix’s COSEC series, which provides advanced security solutions for organizations. The series typically supports Credentials like Biometric Fingerprint, RFID card-based authentication, Bluetooth. It connects to access control panels and is used in environments where tracking employee attendance and controlling entry to restricted areas are critical.
Key features include:
Biometric & card-based authentication
Integration with central access control software
Real-time data monitoring
Secure communication protocols
Easy integration with existing systems
It is suitable for corporate offices, manufacturing plants, and other high-security areas
Key Specs
- BLE: Yes (BLE 4.0)
- PoE: Available
- USB: NA
- Wi-Fi: Yes (IEEE 802.11 b/g/n)
- RS-232: Available
- Display: NA
- Wiegand: Available
- 3G/4G/LTE: NA
- RF Option: Proximity (EM Prox – 125KHz)
- Display Size: NA
- Event Buffer: 500000
- Cards Per User: 2
- Face Templates: NA
- Door Lock Power: Internal 12 VDC @ 0.25 A
- Door Lock Relay: Yes
- Door Status Sense: Yes (2 State)
- Credential Support: BLE, Fingerprint and EM Proximity Card
- Templates per User: 10
- Exit Switch/Exit Reader: Yes
- Max.Finger Template Storage: 100000
Or
Product Specifications
General
Credential Support
BLE, Fingerprint and EM Proximity Card
RF Option
Proximity (EM Prox – 125KHz)
IP Rating
IP 65
Capacity
Max.Users
50,000
Face Templates
NA
Max.Finger Template Storage
100000
Event Buffer
500000
Templates per User
10
Cards Per User
2
FACE RECOGNITION
Algorithm
NA
Fake Face Detection
NA
Face Identification
NA
Face Enrolment
NA
Communication
Ethernet
Available
PoE
Available
RS-232
Available
Wi-Fi
Yes (IEEE 802.11 b/g/n)
BLE
Yes (BLE 4.0)
Mobile Broadband
NA
3G/4G/LTE
NA
Wiegand
Available
USB
NA
Interface
Exit Switch/Exit Reader
Yes
Door Status Sense
Yes (2 State)
Door Lock Relay
Yes
Door Lock Power
Internal 12 VDC @ 0.25 A
Aux-In
NA
Aux-Out
NA
HARDWARE
CPU
Cortex A8 800 MHz
Memory
512 MB
Display
NA
Display Size
NA
LED
Single Tri- Color LED
Buzzer
Yes
Keypad
NA
Operating Temperature
0°C to +50°C (32°F to 122°F)
Humidity
5% to 95% RH Non – Condensing
Tamper Detection
Yes
Power
12V DC @ 2A
Dimension(W x H x D)
50mm x 159mm x 42mm (1.96” x 6.25” x 1.65”)
Weight
0.375kg (0.826 lbs)
Compatibility
System Integration
API for Software Integration
Operational Modes
Direct Door with COSEC CENTRA Server Panel Door with COSEC PANEL200P
Sensor
Sensor Name
Suprema Sensor - SFM6030-OC6
Sensor Technology
Optical
Encryption
256-bit AES
Waterproof
Yes
False Acceptance Ratio (FAR)
0.001%
False Rejection Ratio (FRR)
0.01%
Resolution(dpi)
500 dpi
Sensing Area
16.00mm x 19.00mm
Template Size
384 Bytes
image Size(Pixel)
272mm x 320mm
Applications Support
Access Control
Supports
Time-Attendance
Supports
Visitor Management
Supports
Contract Worker's Management
Supports
Cafetaria Management
Na
Job Processing & Costing
Supports
