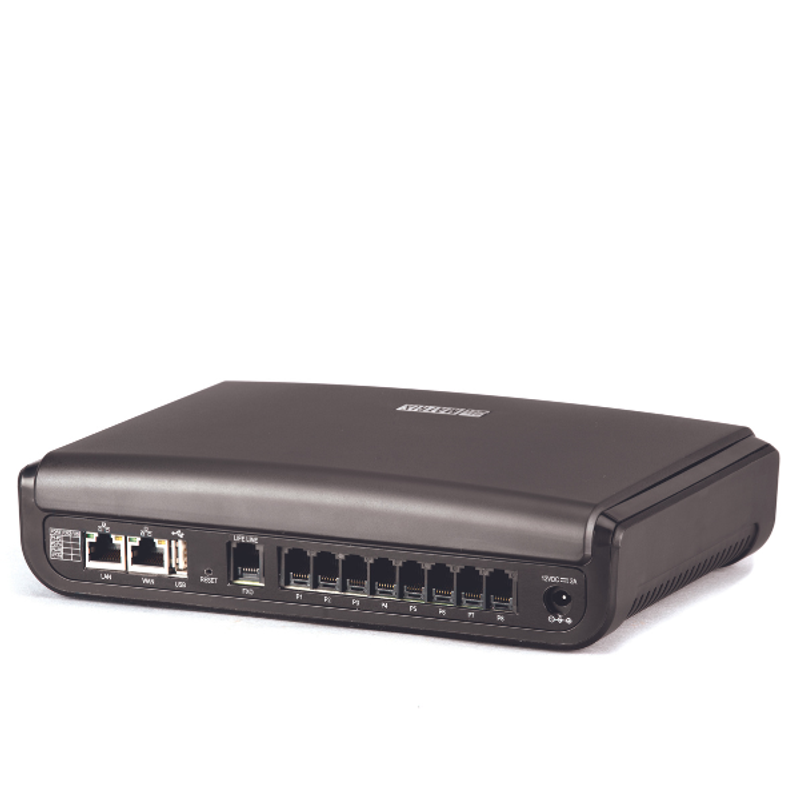

SETU VFX808 (VoIP-FXO-FXS Gateway with 8 FXS, 8 VoIP Channels) Gateway: Suitable for multi office connectivity solution, compatible with all the open SIP PBX. 8 Analog Phones can be connected
SKU: SETU VFX808
Select required product from options below:
FXS Ports: 8 FXS Port
About Product
SETU VFX/VFXTH series is a range of multi-channel VoIP - FXO and FXS Gateways. It enables small and medium businesses to create a seamless office environment, integrates a traditional phone system into an IP network, and significantly reduces communication costs. These Gateways are ideally suitable for business and consumer VoIP services, including call centers and multi-location environments. SETU VFX/VFXTH also enables large organizations to connect branch offices dispersed globally for site-to-site IP Telephony. This in turn reduces communication costs and helps them utilize existing telecom infrastructure. Compatible with All the Open SIP PBX
Key Specs
- Security: SRTP/TLS over SIP
- Connector: RJ11
- Signaling: Loop Start
- SIP Accounts: 9
- Voice Codecs: G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
- VoIP Protocol: SIPv2, SDP, RTP (RFC 2833)
- No.of FXO Ports: NA
- No.of FXS Ports: 8
- Network Protocol: IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding, and DMZ
- Fax over IP (FoIP): T.38 and Pass-Through
Or
Product Specifications
General Specification
SIP Accounts
9
No.of FXO Ports
NA
No.of FXS Ports
8
Data Network
2 Port 10/100 Base-T (RJ45)
VoIP Protocol
SIPv2, SDP, RTP (RFC 2833)
Network Protocol
IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding, and DMZ
Voice Codecs
G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
Line Echo Cancellation
G.168 with 128ms Tail Length
Voice Processing Techniques
Dynamic Jitter Buffer (Adaptive),Comfort Noise Generation (CNG),Voice Activity Detection (VAD)
Fax over IP (FoIP)
T.38 and Pass-Through
Quality of Service (QoS)
Layer 3 DiffServ and ToS
Security
SRTP/TLS over SIP
Signaling
Loop Start
Connector
RJ11
Loop Limit
1800W (Max.) Excluding Telephone Set
DTMF Dialing & Reception
ITU-T Q.23 and Q.24
CLI Reception
DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Return Loss
>18dB
Power
Supply (Input)
12V DC, 2A
Consumption (Typical)
15W
Physical Properties
Dimensions: W x H x D
16.2 x 5.6 x 23.1 cm
Weight
0.8Kgs (1.76lbs)
Operating Temperature
-10°C to +50°C
Storage Temperature
-40°C to +85°C
