Matrix

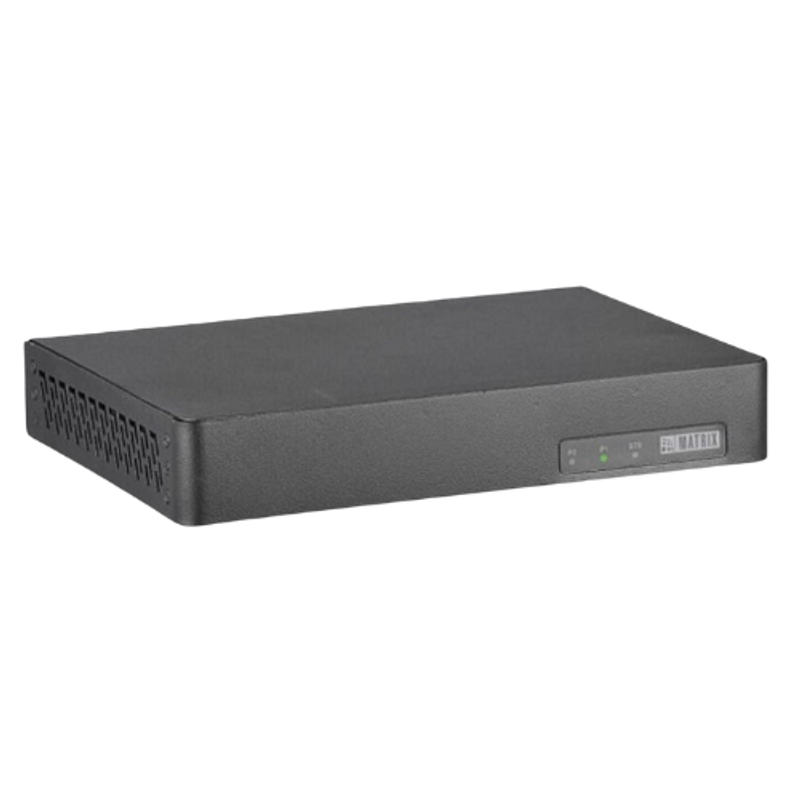

Matrix Spark200, loaded with 200 inbuilt IP License, Pure IP Hardware Platform for Unified Communication Server, Pre-loaded with 1 VOCODER, On-Board CPU and AC Power Supply in 1U Enclosure, No Separate Hardware for VMS is required. 99 Max. IP Trunks, 2100 Max. IP Users(with additional license), 248 Max. VOCODER Channels, 64 Max. VMS Channels, SPARK200 will come with PRASAR UCS ENT license built-in
SKU: SPARK200
About Product
An Enterprise-grade Unified Communication solution that offers Collaboration, Communication, Messaging, and Mobility. Matrix PRASAR UCS brings diverse users from multiple locations to a common communication platform for real-time collaboration and communication. The users have options of using either Matrix SPARSH desk-phones or Matrix VARTA applications on smartphones or tablets of their choice. With an Embedded UC Platform and advanced call management, Matrix PRASAR UCS improves the organization's agility and productivity.
Key Specs
- SIP Trunks: 99
- System Type: Pure IP PBX
- T1/E1 Ports: NA
- Max. IP Extension: 2100
- CO/FXO (TWT) Ports: NA
- Mobile App/Web app: Available
- Digital (DKP) Ports: NA
- GSM/3G/4G LTE Ports: NA
- Max Analog Extension: NA
- Unified Communication Features: Available
Or
Product Specifications
System Resources
System Type
Pure IP PBX
Universal Slots
NA
Max Analog Extension
NA
Digital (DKP) Ports
NA
CO/FXO (TWT) Ports
NA
BRI Ports
NA
T1/E1 Ports
NA
GSM/3G/4G LTE Ports
NA
SIP Trunks
99
Max. IP Extension
2100
Unified Communication Features
Available
Mobile App/Web app
Available
Maximum participants in Single Conference
64
Group Conference (3-Party)
21
Voice Messages (16 seconds each)
Yes
Ethernet Ports (Gigabit)
1 WAN, 1 LAN
Radio Interface Ports
NA
E&M Ports
NA
Max. Concurrent calls from IP User to other IP User
550
Max. Concurrent calls from IP User to other IP Use
550
PMS Integration
YES
SMS GATEWAY
NA
QSIG
NA
CTI
Yes
VOIP
YES
VOIP Protocols
SIP v2, SIP over TCP, Symmetric RTP, RTCP, 100rel/PRACK
Network Protocol
IPv6, IPv4, TCP, UDP, SNTP, STUN, ARP, ICMP, PPP, DNS, SMTP
SIP
Maximum 99 SIP Accounts per System, Out Bound Proxy Support, Display Name, User Name, Password, URL, Proxy URL, Register Interval
VOIP Channels
128/248 VOIP Channels with 2/4 VOIP Daughter-Board Modules
Line Echo Cancellation
G.168 with 64/128ms Tail Length
NAT
STUN and NAT Keep Alive
Voice CODECs
G.711 (A-law, μ-Law), G.723, G.729AB, GSM-FR, GSM-EFR and iLBC
Call Progress Tones
Dial tone, Ring Back Tone, Busy Tone, Error Tone
Fax
T.38 Relay and Pass Through
Quality of Service
SIP QoS and RTP QoS
Security
SRTP/TLS over SIP, MD5 Authentication for SIP, Password Protected Configuration by Admin and User
