Matrix

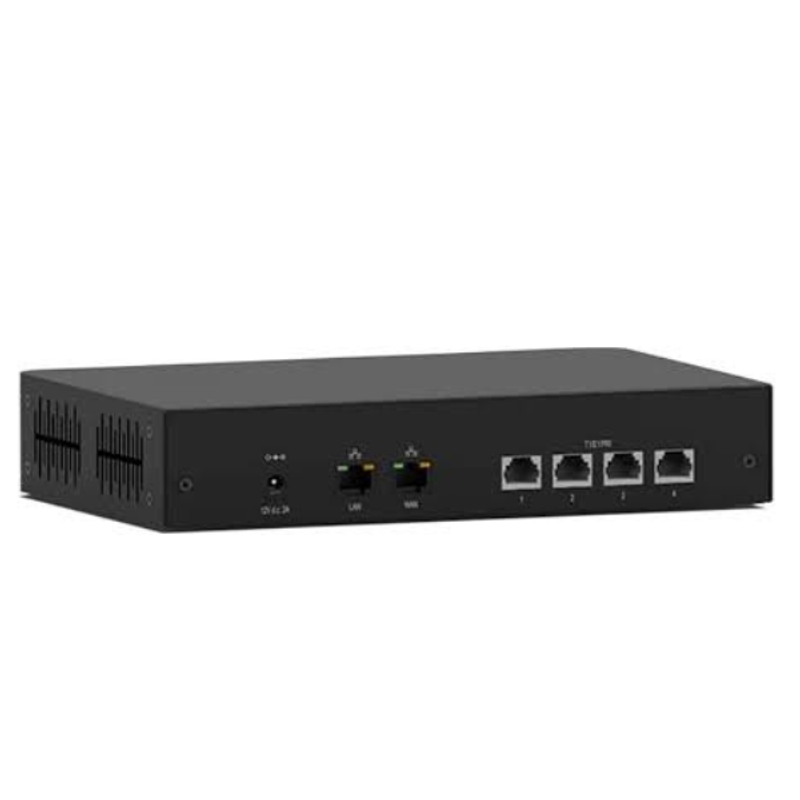

SETU VTEP1P : Matrix VTEP Gateway 1 PRI Port, 30 Simultaneous VoIP to PRI Calls, Compatible with all Open SIP IPPBX and PSTN PBX
SKU: SETU VTEP 1P
Select required product from options below:
PRI Port: 1 PRI Port
About Product
The SETU VTEP Multiport VoIP-PRI gateway supports PRI protocol, adopts a standard T1/E1 trunk interface, and provides a smooth transition by enabling direct routing of calls between the fixed-line ISDN and the cost-effective IP networks for capitalizing on low-cost VoIP telephony.
Key Specs
- FAX: T.38 UDPTL and Pass-Through
- LAN Port: 1 X 10/100/1000 Mbps Gigabit Interface
- WAN Port: 1 X 10/100/1000 Mbps Gigabit Interface
- SIP Trunk: 125
- Voice Codecs: G.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
- VoIP Protocols: SIP V2, SDP, RTP (RFC 2883)
- T1/E1 PRI Ports: 1
- Network Protocol: IPv4, IPv6, TCP, UDP, DHCP, SNTP, STUN, HTTP
- Dimensions(W/H/D): 250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
- No.of. Simultaneous Calls: 30
- No.of Built in VoIP Modules: 1
Or
Product Specifications
General Specification
T1/E1 PRI Ports
1
Specification
SIP Trunk
125
No.of. Simultaneous Calls
30
No.of Built in VoIP Modules
1
LAN Port
1 X 10/100/1000 Mbps Gigabit Interface
WAN Port
1 X 10/100/1000 Mbps Gigabit Interface
VoIP Protocols
SIP V2, SDP, RTP (RFC 2883)
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, SNTP, STUN, HTTP
NAT
STUN and NAT Keep-Alive
Voice Codecs
G.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
Call Progress Tone
Dial Tone, Ring Back Tone, Busy Tone, and Error Tone
FAX
T.38 UDPTL and Pass-Through
Power Supply
12V DC, 2A
Power Consumption
22.37 Watt (Max.)
Dimensions(W/H/D)
250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
Mounting
1U Rack Mount & Table-Top
Operating Temperature
0°C to 45°C
Operating Humidity
5-95 RH, Non-Condensing
Storage Temperature
-20°C to +70°C
Storage Humidity
0-95% RH, Non-Condensing
