R&M CAT6 Cable

R&M

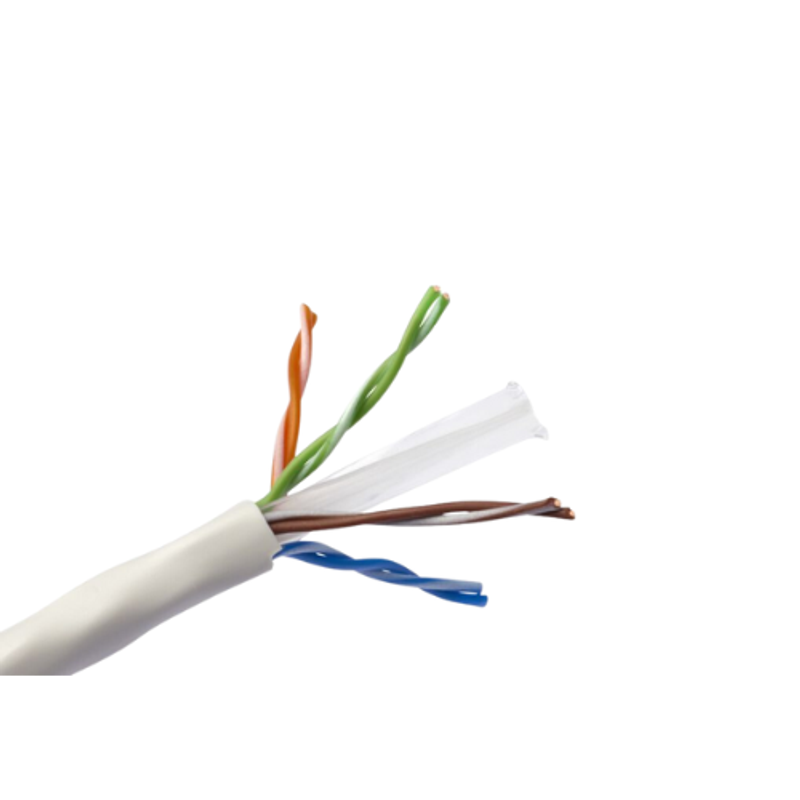

R&M CAT6A Cable U/UTP LSZH 650 MHz

SKU: R195718
Select required product from options below:

CAT6 Type: CAT6A

About Product

R&M CAT6 cable is a high-performance Ethernet cable designed for fast and reliable data transmission. It supports speeds up to 1 Gbps and bandwidth up to 650 MHz, ideal for LAN, office networks, and data centers. The cable ensures minimal interference with advanced shielding and precise manufacturing. Known for durability, R&M CAT6 cables meet international standards like ISO/IEC and ANSI/TIA.

Key Specs

  • AWG: 23 AWG
  • Sheath: LSZH, gray RAL 7035
  • Conductor: Bare solid copper wire AWG23 (≥ 0.56mm)
  • Frequency: 650 MHz
  • Cable Type: CAT6A
  • Standards:: ISO/IEC 11801 2nd ed.; IEC 61156-5 2nd ed, EN 50173-1; EN 50288-6-1 EIA/TIA 568B.2.1
  • Application:: Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM, Confirming to European regulation “CPR” EN 50575
  • DC loop resistance: ≤ 9.38Ω/100m
  • Outer diameter in mm: Nominal 7.0 +/- 0.8mm

Sign In for Partner Pricing

Not a partner? Register here

Or

Product Specifications

General Specification

Cable Type
CAT6A
Frequency
650 MHz
AWG
23 AWG

Physical Properties

Conductor
Bare solid copper wire AWG23 (≥ 0.56mm)
Insulation
Polyolefin ≤ 1.09mm
Twisting
2 wires to the pair
Cable lay up
4 pairs to the core with cross separator
Sheath
LSZH, gray RAL 7035

Technical Data

Outer diameter in mm
Nominal 7.0 +/- 0.8mm
Tensile force
100 N

Mechanical Properties

Bending radius
≥ 35 mm without load; ≥ 70 mm with load
Temperature range
-20°C…+ 60°C

Electrical Properties

DC loop resistance
≤ 9.38Ω/100m
Resistance unbalance
≤2%
Insulation resistance (500 V)
≥ 5000 MΩ.km
Capacitance
50 pF/m max
Capacitance unbalance (pair to ground)
≤ 1600 pF/km max
Mean characteristic impedance
(100 ± 5) Ω
Nominal velocity of propagation
approx. 67%
Propagation delay
≤ 570 ns/100m
Delay skew
≤ 45 ns/100m
Test voltage (DC, 1 min) Core/Core
1000 V

Compliance

Application:
Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM, Confirming to European regulation “CPR” EN 50575
Standards:
ISO/IEC 11801 2nd ed.; IEC 61156-5 2nd ed, EN 50173-1; EN 50288-6-1 EIA/TIA 568B.2.1
