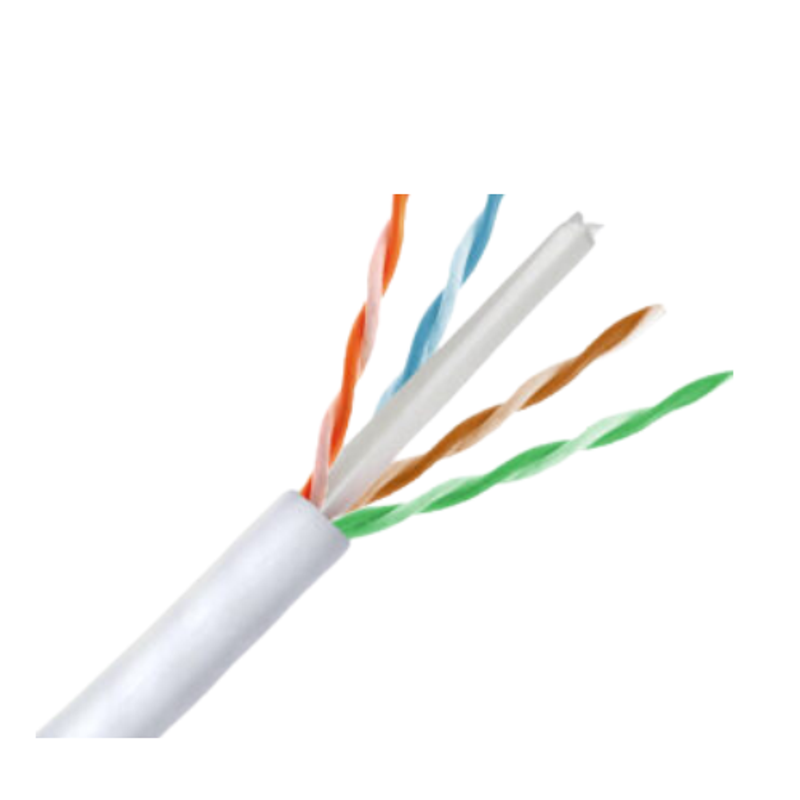

R&M CAT6 Cable 23 AWG
SKU: R195731
Select required product from options below:
CAT6 Type: 23 AWG
About Product
R&M CAT6 cable is a high-performance Ethernet cable designed for fast and reliable data transmission. It supports speeds up to 1 Gbps and bandwidth up to 650 MHz, ideal for LAN, office networks, and data centers. The cable ensures minimal interference with advanced shielding and precise manufacturing. Known for durability, R&M CAT6 cables meet international standards like ISO/IEC and ANSI/TIA.
Key Specs
- AWG: 23 AWG
- Sheath: LSZH
- Conductor: Bare copper wire 0.57 mm
- Frequency: 250 MHz
- Cable Type: CAT6 23AWG
- Standards:: ISO/IEC 11801 2nd ed.; IEC 61156-5 2nd ed, EN 50173-1; EN 50288-6-1 EIA/TIA 568B.2.1
- Application:: Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM
- DC loop resistance: ≤ 14.5 Ω/100m
- Outer diameter in mm: 5.6
Or
Product Specifications
General Specification
Cable Type
CAT6 23AWG
Frequency
250 MHz
AWG
23 AWG
Physical Properties
Conductor
Bare copper wire 0.57 mm
Insulation
Polyethylene, Ø 0.90 mm
Twisting
2 cores to the pair 4 pairs
Cable lay up
to the core
Sheath
LSZH
Technical Data
Outer diameter in mm
5.6
Tensile force
100
Mechanical Properties
Bending radius
≥ 35 mm without load; ≥ 55 mm with load
Temperature range
-20°C…+ 60°C
Electrical Properties
DC loop resistance
≤ 14.5 Ω/100m
Resistance unbalance
≤2%
Insulation resistance (500 V)
≥ 5000 MΩ.km
Capacitance
44 pF/m max
Capacitance unbalance (pair to ground)
≤ 1500 pF/km max
Mean characteristic impedance
(100 ± 5) Ω
Nominal velocity of propagation
approx. 67%
Propagation delay
≤ 534 ns/100m
Delay skew
≤ 40 ns/100m
Test voltage (DC, 1 min) Core/Core
1000 V
Compliance
Application:
Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM
Standards:
ISO/IEC 11801 2nd ed.; IEC 61156-5 2nd ed, EN 50173-1; EN 50288-6-1 EIA/TIA 568B.2.1
